Model Whirlpool 1453^0A GAS RANGE – Common Parts & Diagrams

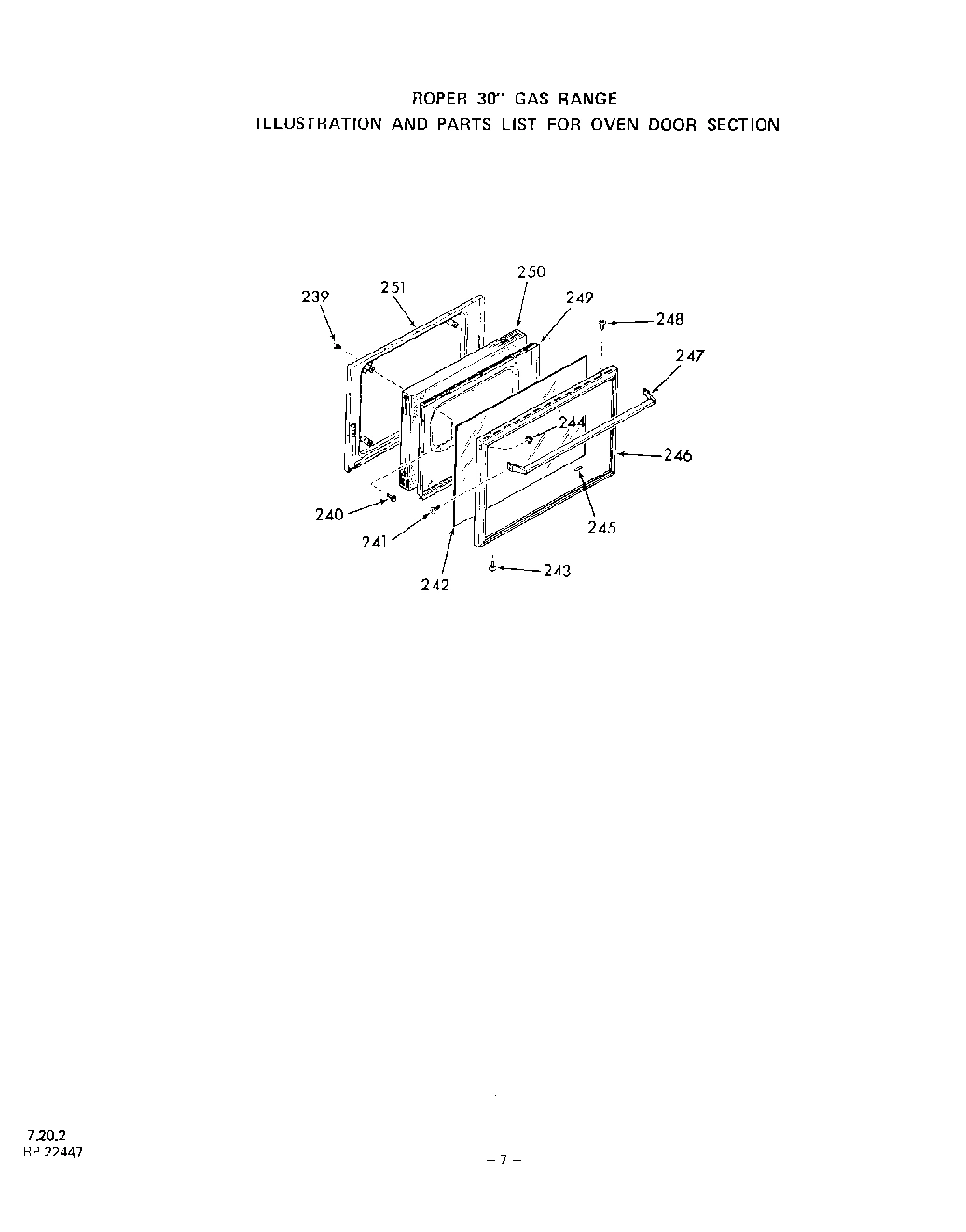

05 - OVEN DOOR
08 - SECTION
04 - BODY

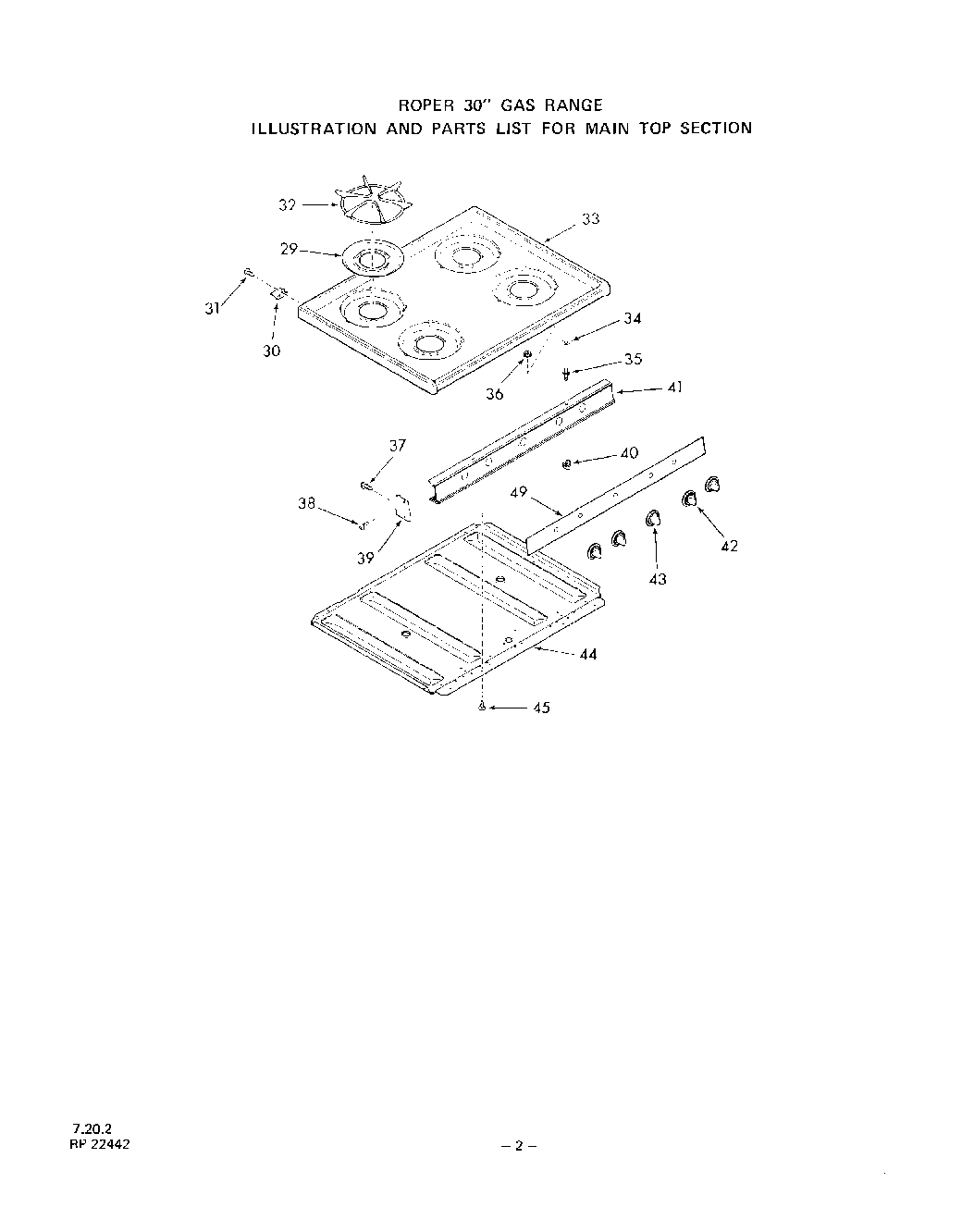

02 - MAIN TOP
06 - ROTISSERIE , GRIDDLE

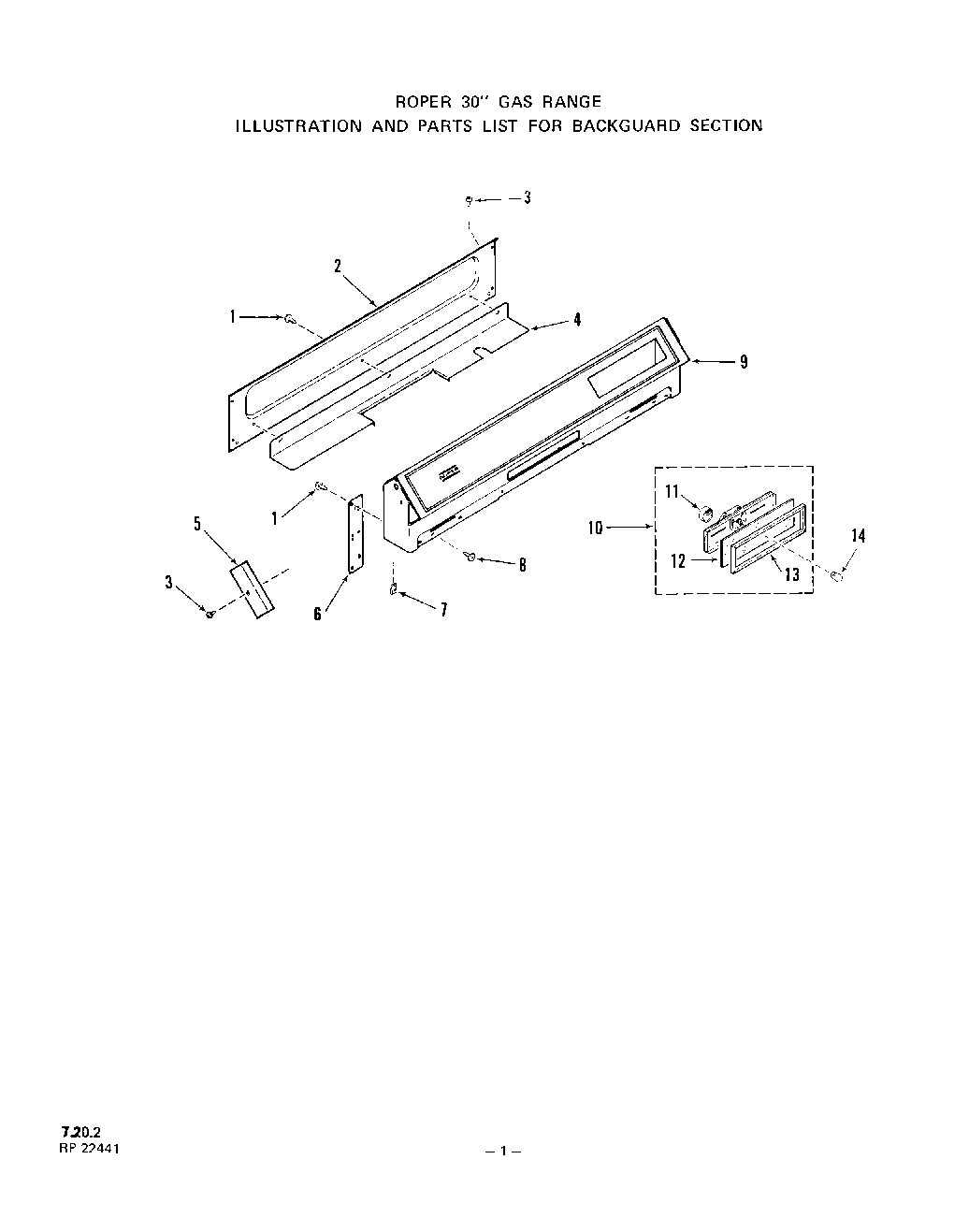

01 - BACKGUARD

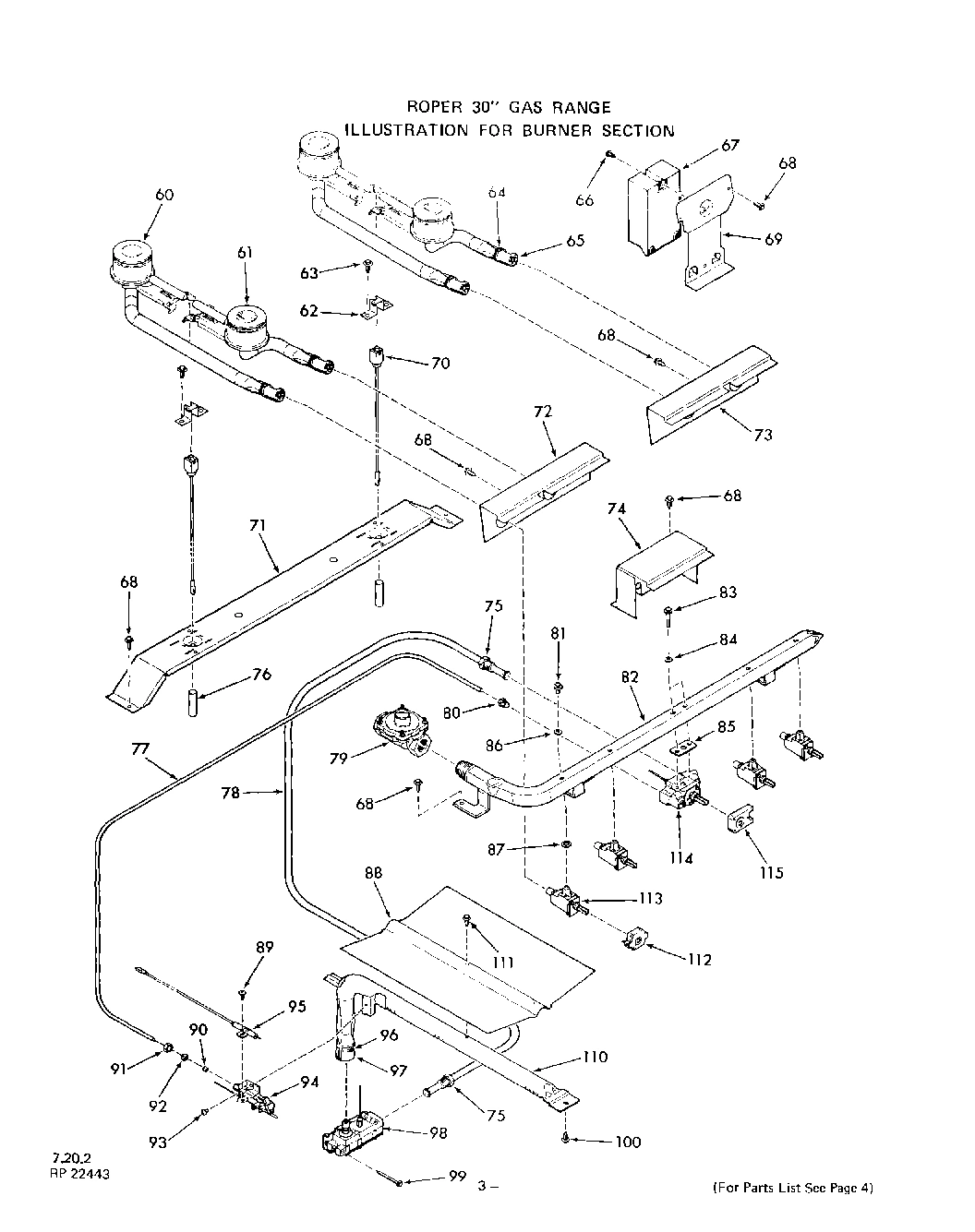

03 - BURNER
Common parts from model Whirlpool 1453^0A GAS RANGE
2
Wire Cover-Backguard WPL 323291 Contact Us For Availability
4
Bottom-Backguard Wire Cover WPL 296569 Contact Us For Availability
5
End Cap-Backguard (Lt. or Rt.) WPL 288860 Contact Us For Availability
6
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
7
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
9
Crosstie WPL 322882 Contact Us For Availability
10
Clock-60 Cycle WPL 323224 Contact Us For Availability
11
Clock Motor-60 Cycle WPL 283296 Contact Us For Availability
12
Glass-Clock WPL 323945 Contact Us For Availability
13
Bezel-Clock WPL 302568 Contact Us For Availability
14
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
29
Spill Bowl (4 Required) WPL 322888 Contact Us For Availability
30
Retainer-Main Top (Lt. or Rt.) WPL 301672 Contact Us For Availability
31
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
32
Top Grate (4 Required) WPL 316786 Contact Us For Availability
33
Main Top (White) WPL 316813 Contact Us For Availability
33
Main Top (Almond) WPL 316814 Contact Us For Availability
33
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
33
Main Top (Chrome) WPL 322876 Contact Us For Availability
34
Washer WPL 99279 Contact Us For Availability
35
Strike (Rt. or Lt.) WPL 299784 Contact Us For Availability
36
Keps Nut WPL 239764 Contact Us For Availability
37
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
38
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
39
End Cap-Manifold Panel (Left) WPL 318258 Contact Us For Availability
39
End Cap-Manifold Panel (Right) WPL 318259 Contact Us For Availability
40
Catch - Main Top Strike WPL 24667 Contact Us For Availability
41
Manifold Panel WPL 322807 Contact Us For Availability
42
Knob-Gas Valve (4 Required) WPL 320904 Contact Us For Availability
43
Knob-Oven Thermostat WPL 322170 Contact Us For Availability
44
Burner Box Bottom WPL 320408 Contact Us For Availability
45
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
49
Trim-Manifold Panel WPL 322873 Contact Us For Availability
60
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310197 Contact Us For Availability
61
Front Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310196 Contact Us For Availability
62
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
64
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
65
Air Shutter WPL 301910 Contact Us For Availability
66
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
67
Module-Spark Igniter WPL 318430 Contact Us For Availability
69
Support-Spark Igniter WPL 318439 Contact Us For Availability
70
Electrode-Spark Igniter (Left) WPL 312455 Contact Us For Availability
70
Electrode Spark Igniter (Right) WPL 312598 Contact Us For Availability
71
Support-Top Burner WPL 313375 Contact Us For Availability
72
Valve Cover-Left WPL 321172 Contact Us For Availability
73
Valve Cover-Right WPL 321170 Contact Us For Availability
74
Wire Cover-Oven Thermostat WPL 318460 Contact Us For Availability
75
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
76
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
77
Tubing 3/16`` WPL 322446 Contact Us For Availability
78
Tubing 3/8`` WPL 295037 Contact Us For Availability
79
Pressure Regulator WPL 293809 Contact Us For Availability
80
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
81
Mounting Screw (Inc`s 86) WPL 311455 Contact Us For Availability
82
Manifold Pipe WPL 318481 Contact Us For Availability
83
Mounting Screw (2 Req. for 114) WPL 318478 Contact Us For Availability
84
Gasket (For 83) WPL 318658 Contact Us For Availability
85
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
86
Gasket (For 81) WPL 304241 Contact Us For Availability
87
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
88
Baffle - Oven Burner WPL 302729 Contact Us For Availability
89
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
90
Orifice Cup Only (For 94) WPL 318485 Contact Us For Availability
91
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
92
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
93
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
94
Pilot Only (Inc`s 90) WPL 318486 Contact Us For Availability
95
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
96
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
97
Air Shutter WPL 312988 Contact Us For Availability
98
Control Valve (Inc`s 90 & 94) WPL 318482 Contact Us For Availability
99
Screw 10-32x2`` WPL 112365 Contact Us For Availability
110
Oven Burner (Inc`s 88, 96 & 97) WPL 319255 Contact Us For Availability
111
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
112
Sw WPL 312457 Contact Us For Availability
113
WPL 318479 WPL 318479 Contact Us For Availability
114
WPL 318477 WPL 318477 Contact Us For Availability
115
WPL 318432 WPL 318432 Contact Us For Availability
132
Pad-Body Side (2 Required) WPL 303513 Contact Us For Availability
133
Body Side (White-Right) WPL 323084 Contact Us For Availability
133
Body Side (White-Left) WPL 323085 Contact Us For Availability
133
Body Side (Golden Wheat-Right) WPL 323090 Contact Us For Availability
133
Body Side (Golden Wheat-Left) WPL 323091 Contact Us For Availability
133
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
133
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
135
Broiler Drawer WPL 305259 Contact Us For Availability
136
Broiler Pan WPL 290171 Contact Us For Availability
137
Broiler Pan Grid WPL 313071 Contact Us For Availability
138
Spring-Oven Door (2 Required) WPL 308735 Contact Us For Availability
139
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
140
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
141
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
142
Oven Body WPL 323854 Contact Us For Availability
143
Insulation - Oven Back WPL 296140 Contact Us For Availability
144
Main Back WPL 322910 Contact Us For Availability
146
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
147
Flue Deflector WPL 300917 Contact Us For Availability
148
Clip WPL 106767 Contact Us For Availability
149
Range Service Cord WPL 235822 Contact Us For Availability
150
Wire Shield WPL 318443 Contact Us For Availability
151
Disconnect WPL 232150 Contact Us For Availability
152
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
153
Clip-Thermostat Bulb (2 Required) WPL 115533 Contact Us For Availability
154
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
155
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
156
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
156
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
159
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
160
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
162
Front Panel-Broiler Door WPL 322872 Contact Us For Availability
163
Strike-Broiler Door WPL 24668 Contact Us For Availability
165
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
166
Washer WPL 303963 Contact Us For Availability
167
Shoulder Screw 10-32x1/2`` WPL 289730 Contact Us For Availability
169
Guide-Oven Rack WPL 305409 Contact Us For Availability
170
WPL 305408 WPL 305408 Contact Us For Availability
171
WPL 296070 WPL 296070 Contact Us For Availability
172
WPL 101063 WPL 101063 Contact Us For Availability
173
WPL 316994 WPL 316994 Contact Us For Availability
174
WPL 314573 WPL 314573 Contact Us For Availability
175
WPL 314574 WPL 314574 Contact Us For Availability
177
WPL 69603 WPL 69603 Contact Us For Availability
178
WPL 302267 WPL 302267 Contact Us For Availability
181
WPL 302343 WPL 302343 Contact Us For Availability
182
WPL 292240 WPL 292240 Contact Us For Availability
241
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
242
Glass-Oven Door WPL 320736 Contact Us For Availability
243
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
245
Cushion-Door Glass WPL 112370 Contact Us For Availability
246
Frame-Door Glass WPL 296473 Contact Us For Availability
247
Handle-Oven Door WPL 303342 Contact Us For Availability
248
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
249
Retainer-Oven Door Insulation WPL 320735 Contact Us For Availability
250
Insulation-Oven Door WPL 296142 Contact Us For Availability
251
Module WPL 318427 Contact Us For Availability
251
Lining-Oven Door WPL 321411 Contact Us For Availability
251
Switch-Gas Valve WPL 322226 Contact Us For Availability
× ![]()
